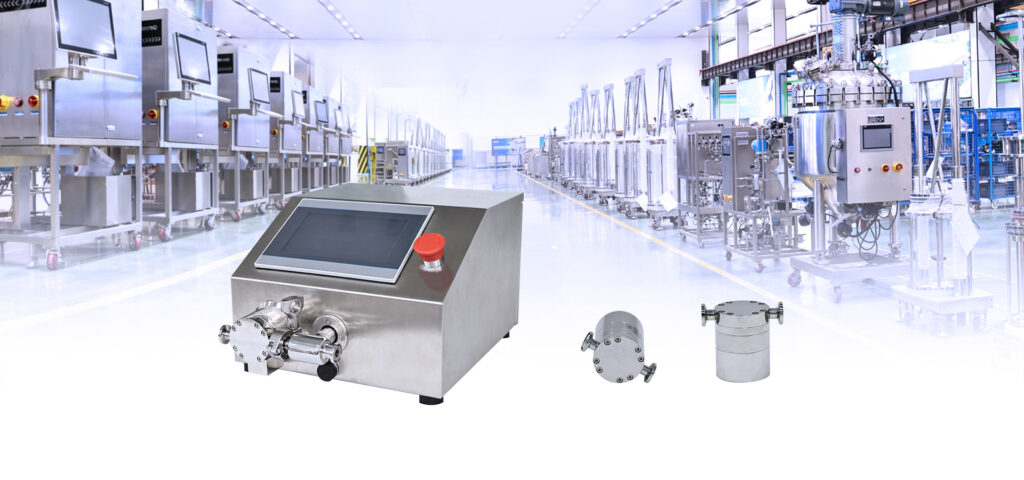

TC180 Quaternary Diaphragm Pump
Smart TC Series four-piston diaphragm pump for sanitary and biopharmaceutical applications
Overview
The TC180 Smart Quaternary Diaphragm Pump is designed for sanitary fluid transfer applications that require stable flow, low pulsation, low shear, and easy cleaning. It is well suited for biopharmaceutical processing, laboratory systems, and other hygienic process environments where product purity, reliability, and cleanability are critical.
With a flow range of 0.02–3 L/min and a maximum operating pressure of 6 bar, the TC180 provides precise and consistent pumping performance in compact sanitary systems. Its wetted materials are selected for hygienic compatibility, and the pump structure is designed to support clean operation, simple maintenance, and reliable long-term use.
Key Technical Advantages
- Gentle, low-shear transfer suitable for sensitive biologics and aqueous solutions
- Very low pulsation characteristics supporting stable and repeatable flow control
- PTFE diaphragm providing excellent chemical resistance and hygienic performance
- Pump head capable of withstanding up to 10 bar instantaneous pressure shock
- Ball-driven transmission design supporting efficient torque transfer and stable operation
- Linear speed-flow relationship enabling predictable flow adjustment
- Self-priming capability supporting flexible system integration
- Hygienic design suitable for CIP and SIP processes
Typical Applications
The TC180 is suitable for a range of sanitary and bioprocess applications, including:
- Biopharmaceutical fluid transfer
- Buffer and media delivery
- Chromatography systems
- Tangential flow filtration (TFF)
- Laboratory and pilot-scale process systems
- Sanitary process skids and OEM equipment
Technical Specifications
| Model | TC180 |
| Pump Type | Smart Quaternary (Four-Piston) Diaphragm Pump |
| Flow Rate | 0.02-3 L/min |
| Speed Range | 20-2700 rpm |
| Voltage | 110-220V |
| Power | 0.1KW |
| Max. Operating Pressure: Temperature of Fluid < 40°C (104°F) | 6 bar |
| Moist Heat Sterilization (SIP) 30 min | 135°C (275°F) |
| Pump Chamber Volume (excluding fittings) | 9.8 ml |
| Pump Weight with Motor and Housing | 12.8 kg |
| Connector | TC Clamp ( Ø25) |
| Pump Dimension with Motor and Housing (L x W x H) | 305 x 424.5 x 225 mm |
Speed-Flow Characteristics
The figure below shows the speed-flow characteristic curves of the TC180 pump head at different operating pressures, using purified water at room temperature as the test medium.
The relationship between speed and flow is essentially linear, demonstrating stable and predictable flow performance across the operating range. The adjustable speed range is 20–2700 rpm, and the maximum flow rate can exceed 3 L/min under appropriate operating conditions.
The linear relationship between speed and flow enables stable, predictable, and controllable fluid transfer performance across a wide operating range.

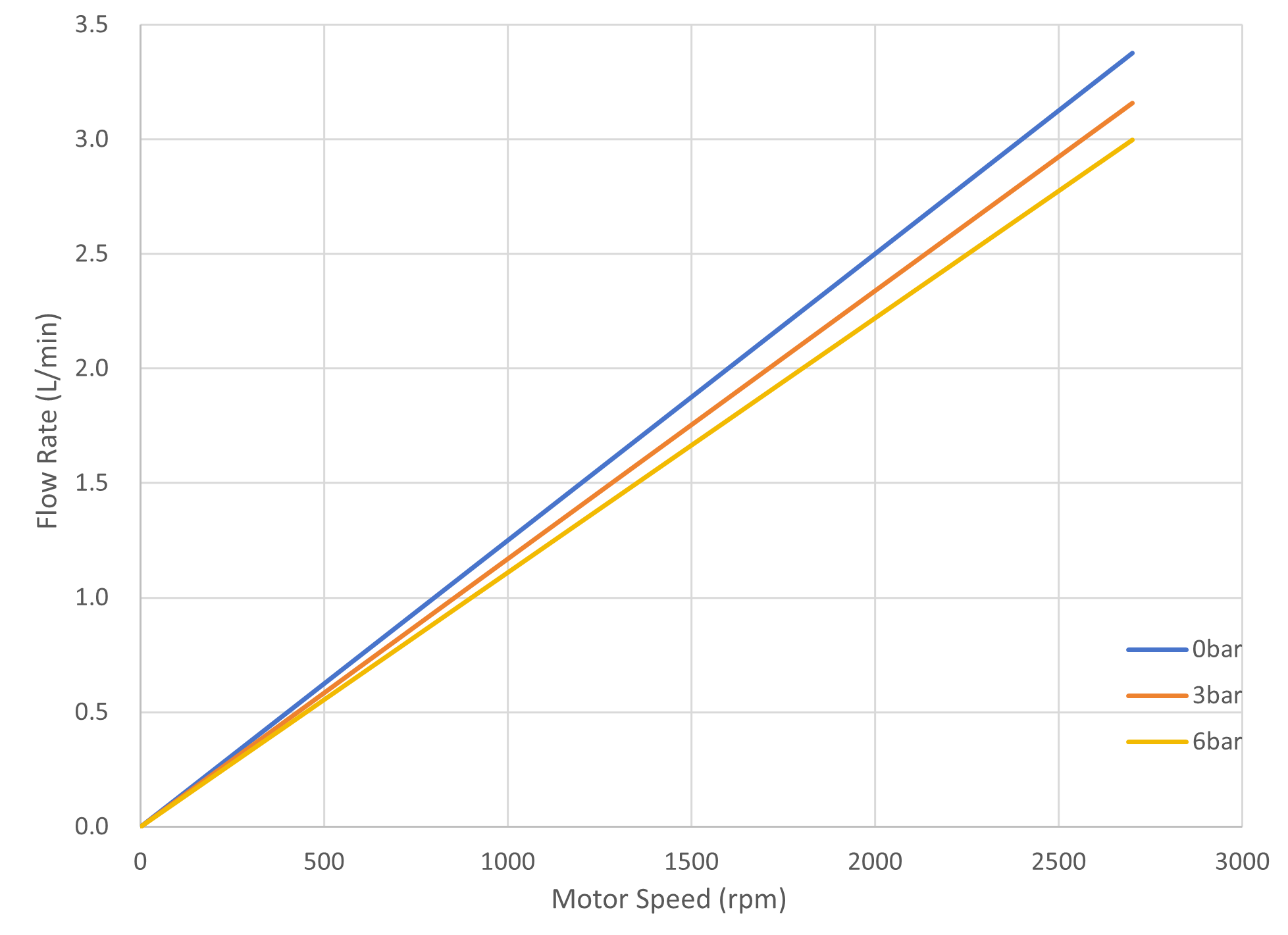

TC180 speed-flow characteristic curves under different operating pressures
Wetted Materials
| Pump Chamber with Inlet/Outlet Ports | AISI 316L |
| Diaphragm | PTFE |
| Check Valve Diaphragm | EPDM |
| O-Ring | EPDM |
Non-wetted Materials
| Pump Housing | SUS 304 |
| Machined Metal Parts | SUS 304 |
| Screw and Sleeve Nut | SUS 304 |
Environmental Specifications
| Storage & Transportation Temperature Range | 5–55 °C |
| Storage & Transportation Humidity Range | 0–50% |
| Operating Temperature Range | 2–40 °C |
| Operating Humidity Range | 0–50% |
Customization & OEM Integration
Smart TC Series Quaternary Diaphragm Pumps can be customized to meet specific system integration and process requirements.
Sainty Flowtech supports OEM integration and customized configurations for laboratory equipment manufacturers, bioprocess system integrators, and sanitary process equipment builders.
Available customization options may include control integration, connection configurations, mounting solutions, and system-specific adaptations to support seamless integration into OEM equipment and process skids.
